Set up
1.Press learning button twice,
2.Touch wall switch once,succeed.
Reset:
1.Press learning button 8times,the indicate will flash several times.Succeed.
Features
1.Convenience and Save energy.
turn on the lights in advance,turn off the lights when leaving.
2.Powerful,for your smart home
One receiver can use in many places.The wall switch can work un to 50meters
3.Widely Using
AC 90-250V 10A controller.U can use it in many different places
How to Connect
Input power needs AC90-250V.The max current is 10A.
Product Parameter
|
parameter |
Controller |
|
Input power |
AC 90-250V |
|
Frequency |
433MHz |
|
Remote storage |
25pcs |
|
Size |
3.19*1.61*0.98 in |
|
Weight |
0.1 lb |
|
Max Current |
10A |
|
Shell |
Yes |
|
Port |
L/N |
|
Certification |
CCC,CE,RoHS |
|
Feature |
Easy connect,Easy setup |
|
parameter |
Touch Switch |
|
Size |
3.38*3.38*0.51 in |
|
Frequency |
433MHz |
|
Battery |
1*27A12V(Not include) |
|
Control Distance |
0-150 meters |
|
Material |
Plastic |
|
Weight |
0.26 lb |
|
Feature |
Has double side tapecan pasted on anywhere |
|
Feature2 |
Has screws,can stick anywhere |
|
Feature3 |

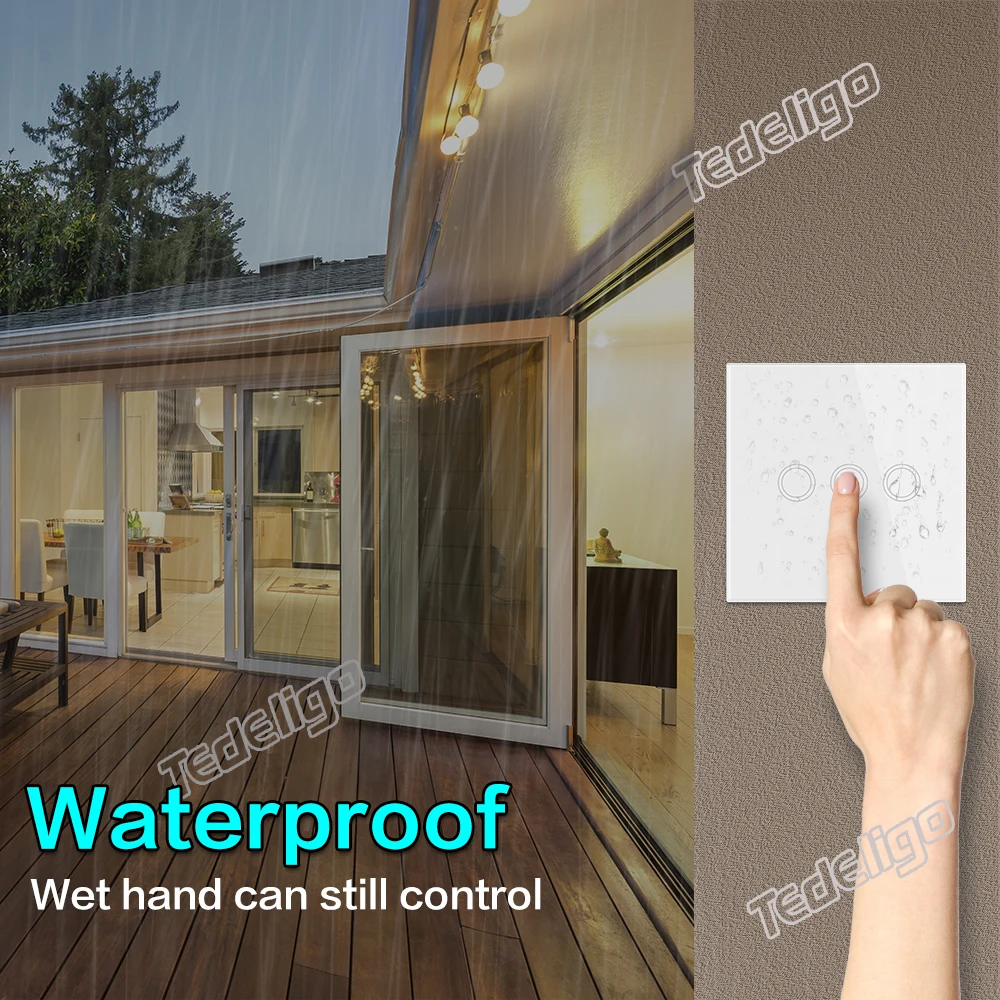

Waterproof |
|
Feature4 |

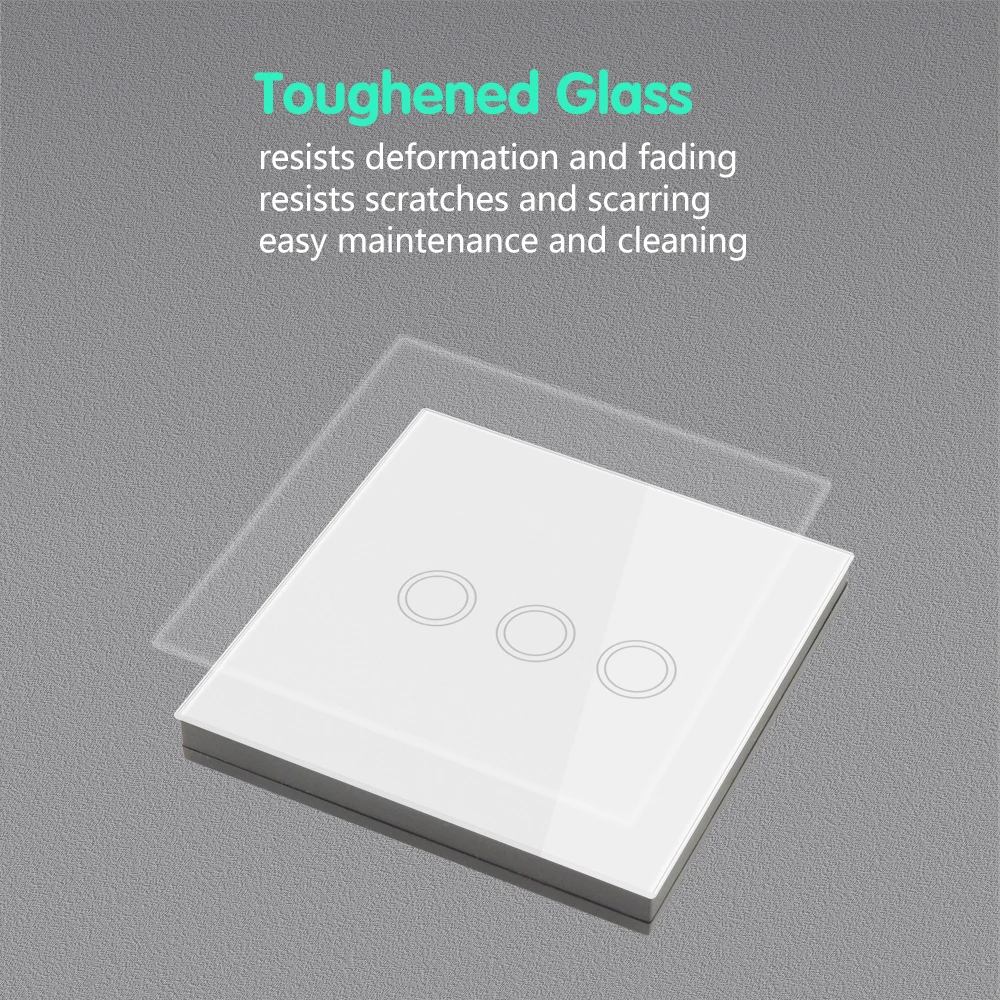

Tempered Glass |
1.Learning button: Press it to set up with wall switches
2.Relay
3.Port: Connect with power and device
4.Indicator: It will light when u press learning button
5.Antenna: Stretch it for a long distance using
6.Receiver Module: Receive signal
Size: 60*48*25mm(2.36*1.89*0.98in)
Weight: 0.11lb/50g
Size:86*86*13mm(3.39*3.39*0.51in) Color: White&Black
Battery:1pcs 27a12v Distance: Up to 50m(theoretical distance)
Package include
For controller : 1pcs RF receiver(with box)
For switch : 1pcs Touch button switch(not include battery,with box) and 2pcs screws,2pcs 3Mglues
1.Can one receiver be controlled by multi switches?
Yes.Of course.One receiver can be controlled by almost 10pcs switches.
2.When the power off and suddenly comes again,does the lamp/device light automaticly?
No.The device only works when you pressed the switch again.Our products are designed for saving energy.
3.Does the receiver need Neutral line?
Yes.Our receiver needs both Live line and Neutral line.
Please contact with us if you have any questions.Thank you.
